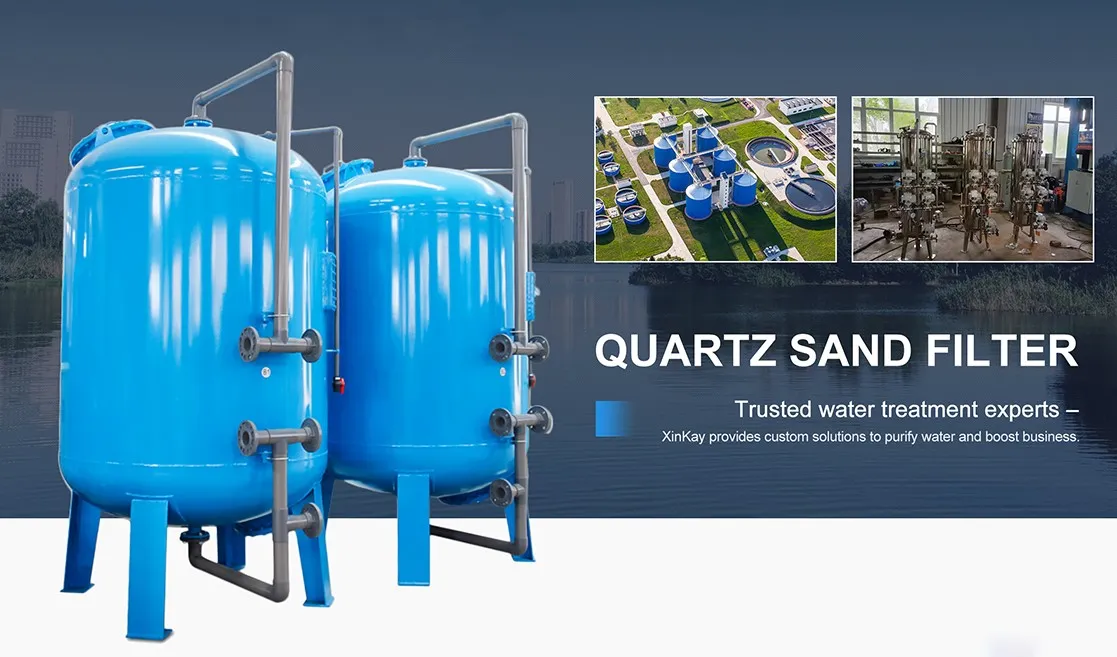

Quartz sand filter (outlet)

Water quality parameters

Inlet turbidity: ＜ 50FTU, outlet turbidity: ＜ 5FTU.

2. Working environment parameters

① Working temperature: 5-60 ℃ (special temperatures can be customized);

② Working pressure: ≤ 0.6MPa;

③ Inlet and outlet pressure difference: 0.1-0.15MPa.

3. Operating parameters

① Working mode: pressure type;

② Operation mode: Water flow from top to bottom;

③ Filtering speed: 40m/h (up to 60m/h);

④ Backwashing water consumption:<3m;

⑤ Backwashing duration: 2-3min.

4. Body material: stainless steel, carbon steel lined with rubber or coated with epoxy resin.

5. Working mode: manual or automatic.

6. Selection Table for Shallow Sand Filter (Note that the following is the operating flow rate of a single unit, usually multiple units are connected in parallel)

Some applications:

Automotive Industry
Quartz sand filters are used to treat cooling fluids, brake fluids, carburetor fluids and washer fluids in automobile manufacturing and maintenance facilities. Their chemical stability ensures fluids are kept clean and contaminant-free. Fine filtration extends fluid lifetime and equipment lifespan.

Medical Devices Industry
Quartz filters coupled with ultrafiltration produce high-purity water for applications like instrument rinsing, hood washdowns and steam sterilization. Their inertness avoids extractables leaching into final water. Tight quality control meets regulations for medical equipment manufacturers.
