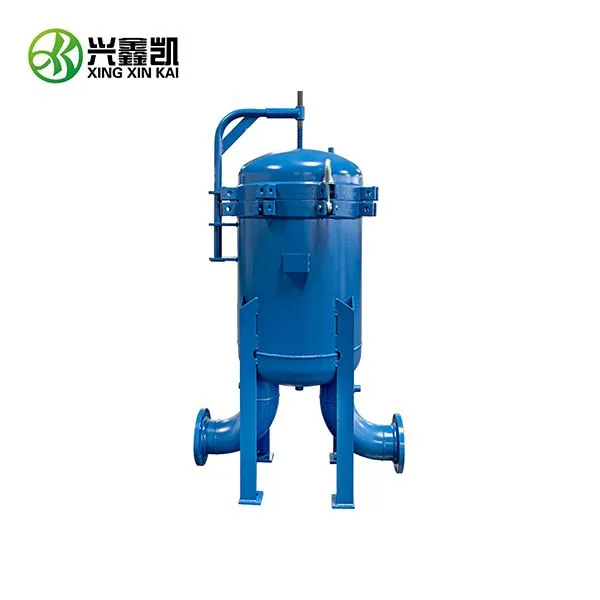

Commercial Bag Water Filter

Product name: bag filter for purifying industrial water

Filter material: 1. Stainless steel 304 2. Stainless steel 316

Anti corrosion measures: 1. Apply epoxy resin internally. 2. Lining with rubber



Technical parameters:

Working pressure: 0.05MPa~0.6MPa

Working temperature: normal temperature

Filtering accuracy: 0.45um~50um

Single unit specifications: φ 200mm~ φ 1000mm

Single unit flow rate: 1.0m3/h~400m3/h





Bag Filter for Purifying Industrial Water:

Industrial water is often contaminated with impurities, particles, and microorganisms that can cause a range of issues, from equipment breakdowns to decreased process efficiency. Therefore, it is crucial to have an effective purification system in place to ensure the water quality and protect the industrial processes. A bag filter is one of the most efficient and cost-effective solutions for purifying industrial water.



What is a Bag Filter?

A bag filter is a type of filtration system that uses a series of filter bags to remove solid impurities and particles from a liquid. The bags are typically made of synthetic materials such as polyester, polypropylene, or nylon, and come in different sizes, micron ratings, and configurations to suit various applications. Bag filters are designed to remove a range of contaminants, including sand, sediment, rust, dirt, algae, bacteria, and viruses.



How does it work?

The bag filter system works by passing the contaminated water through a series of filter bags, which trap the solid particles while allowing the clean water to pass through. The filter bags are held in a bag filter housing, which may be made of stainless steel, carbon steel, or plastic. The housing has inlet and outlet connections, as well as a drain valve for easy maintenance. The bag filter can be used for various flow rates, operating pressures, and temperatures.



Advantages of Bag Filter

Bag filters offer numerous benefits for industrial water purification, including:

1. High efficiency: Bag filters can remove particles as small as 1 micron, ensuring a high level of water quality.

2. Low operating costs: Bag filters require minimal maintenance and have a long service life, reducing operating costs.

3. Easy installation and replacement: Bag filters come in a range of configurations and sizes, making them easy to install and replace.

4. Versatility: Bag filters can be used for various water sources, including municipal and well water.

5. Eco-friendly: Bag filters can reduce water waste and improve energy efficiency, making them a more sustainable solution.



Applications

Bag filters are widely used in various industrial sectors, such as chemical, petrochemical, pharmaceutical, food and beverage, and wastewater treatment. They can be used for different purposes, such as pre-filtration for reverse osmosis systems, protect water treatment equipment such as softeners and ion exchange resins from fouling, and removing impurities from cooling water systems.



Conclusion

A bag filter is an effective and efficient solution for purifying industrial water and maintaining water quality. It offers numerous advantages and can be used for various applications and industries. So if you're looking for a reliable and cost-effective way to purify your industrial water, consider bag filters.





Model	Sc17-1	Sc17-2	Sc17-3	Sc17-4	Sc17-5	Sc17-6
Diameter	200mm	400mm	450mm	500mm	600mm	650
Quantity of flow	1~15m3/h	15~30m3/h	30~50m3/h	50~70m3/h	70~90m3/h	90~110m3/h
Model	Sc17-7	Sc17-8	Sc17-9	Sc17-10	Sc17-11	Sc17-12
Diameter	650mm	800mm	850mm	900mm	1000mm	1000
Quantity of flow	110~120m3/h	120~140m3/h	140~160m3/h	160~180m3/h	180~200m3/h	200~250m3/h









Q: Are you trading company or manufacturer ?

A: We have complete manufacture line and specialized in filter over 2 decade.



Q: How long would my products be delivered to destination?

A: 15-30 days generally, mainly depending on the quantity



Q: Can I get a sample tested? Is that provided for free?

A: Sure, but we are sorry that we don't provide sample for free
