Multimedia Filtration System
multi media filter
multimedia filter design for water treatment
multimedia filter in water treatment
multimedia filter water treatment
multimedia filtration machine
multimedia sand filter

Multimedia Filtration System

●Min. pressure: 0.2Mpa
●Max. pressure:1.0Mpa
●Working temperature:<65℃
●Water in/out: 4 inch

Send Inquiry

Product Introduction

product-1117-657

Technical requirements

●Min. pressure: 0.2Mpa

●Max. pressure:1.0Mpa

●Working temperature:<65℃

●Water in/out: 4 inch

●Power:220V/50Hz

Common multimedia filters used in water treatment include anthracite quartz sand magnetite filters, activated carbon quartz sand magnetite filters, activated carbon quartz sand filters, quartz sand ceramic filters, etc.

Multimedia Filtration System: Clean Water, Clear Solutions

Water is essential to our daily lives, but have you ever considered the quality of the water you consume? The answer may surprise you. Many sources of water, including municipal water supplies, may contain impurities that can be harmful to your health. Fortunately, there is a solution to this problem: the multimedia filtration system.

What is a multimedia filtration system?

A multimedia filtration system uses a combination of different filtration media to remove various impurities from water. These media include sand, gravel, anthracite, and activated carbon. As the water flows through the filter, these media work together to trap contaminants and provide a final product that is safe for consumption.

How does it work?

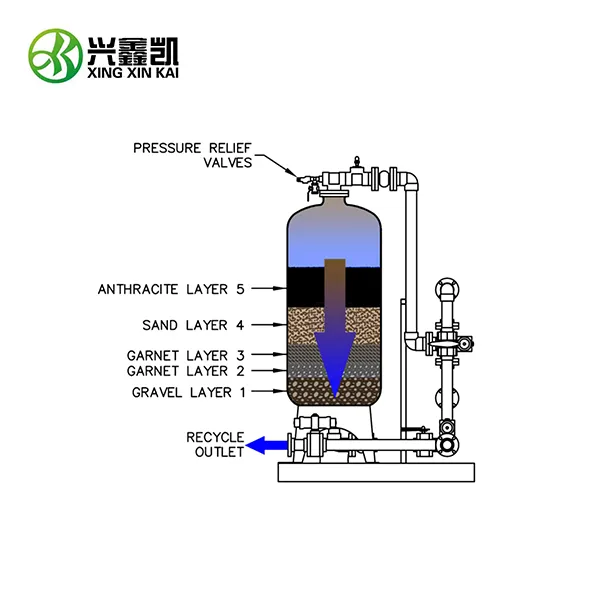

The multimedia filtration system works by passing water through a series of layers that contain the filtration media. Each layer is designed to remove specific impurities. For example, the sand layer is effective at removing large particles, while activated carbon can remove chemicals and odors. Combining these layers creates a filtration system that removes a wide range of impurities.

What are the benefits?

The benefits of a multimedia filtration system are numerous. For one, it provides clean and safe drinking water. It can remove impurities such as chlorine, fluoride, and lead, which can be harmful to your health. It can also improve the taste of your water by filtering out chemicals and impurities that affect the flavor.

Furthermore, a multimedia filtration system can be more economical than purchasing bottled water. It is a long-term investment that can save you money in the long run. Additionally, it is an environmentally friendly solution that reduces plastic waste.

Where can it be used?

A multimedia filtration system can be used in a variety of settings, including homes, businesses, and even municipalities. It can be used as a standalone system or combined with other water treatment systems, such as reverse osmosis or ultraviolet sterilization.

In conclusion, a multimedia filtration system is an effective solution for providing clean and safe drinking water. It is a long-term investment that can save you money and benefit the environment. Consider a multimedia filtration system for your water filtration needs.

Model	Sc05-300	Sc05-400	Sc05-500	Sc05-600	Sc05-700	Sc05-800
Scale	Φ300×1600	Φ400×1600	Φ500×1650	Φ600×1700	Φ700×1600	Φ800×1600
Quantity of flow	0.5~1m³/h	1~1.5m³/h	1.5~2m³/h	2~4m³/h	4~6m³/h	6~8m³/h

Model	Sc05-900	Sc05-1000	Sc05-1200	Sc05-1400	Sc05-1500	Sc05-1600
Scale	Φ900×2400	Φ1000×2500	Φ1200×2700	Φ1400×2800	Φ1500×2900	Φ1600×2900
Quantity of flow	7~9m³/h	8~11m³/h	10~14m³/h	12~18m³/h	14~22m³/h	18~25m³/h

Model	Sc05-1800	Sc05-2000	Sc05-2200	Sc05-2400	Sc05-2500	Sc05-2600
Scale	Φ1800×3200	Φ2000×3300	Φ2200×3500	Φ2400×3500	Φ2500×3600	Φ2600×3700
Quantity of flow	24~32m³/h	28~40m³/h	35~45m³/h	40~55m³/h	45~60m³/h	55~65m³/h

Model	Sc05-2700	Sc05-2800	Sc05-3000	Sc05-3200	Sc05-3400	Sc05-3500
Scale	Φ2700×3750	Φ2800×3800	Φ3000×3850	Φ3200×3950	Φ3400×4100	Φ3500×4300
Quantity of flow	60~72m³/h	68~85m³/h	75~95m³/h	90~110m³/h	100~125m³/h	110~140m³/h

Model	Sc05-300	Sc05-400	Sc05-500	Sc05-600	Sc05-700	Sc05-800
Scale	Φ300×1600	Φ400×1600	Φ500×1650	Φ600×1700	Φ700×1600	Φ800×1600
Quantity of flow	0.5~1m³/h	1~1.5m³/h	1.5~2m³/h	2~4m³/h	4~6m³/h	6~8m³/h

Model	Sc05-900	Sc05-1000	Sc05-1200	Sc05-1400	Sc05-1500	Sc05-1600
Scale	Φ900×2400	Φ1000×2500	Φ1200×2700	Φ1400×2800	Φ1500×2900	Φ1600×2900
Quantity of flow	7~9m³/h	8~11m³/h	10~14m³/h	12~18m³/h	14~22m³/h	18~25m³/h

Model	Sc05-1800	Sc05-2000	Sc05-2200	Sc05-2400	Sc05-2500	Sc05-2600
Scale	Φ1800×3200	Φ2000×3300	Φ2200×3500	Φ2400×3500	Φ2500×3600	Φ2600×3700
Quantity of flow	24~32m³/h	28~40m³/h	35~45m³/h	40~55m³/h	45~60m³/h	55~65m³/h

Model	Sc05-2700	Sc05-2800	Sc05-3000	Sc05-3200	Sc05-3400	Sc05-3500
Scale	Φ2700×3750	Φ2800×3800	Φ3000×3850	Φ3200×3950	Φ3400×4100	Φ3500×4300
Quantity of flow	60~72m³/h	68~85m³/h	75~95m³/h	90~110m³/h	100~125m³/h	110~140m³/h
